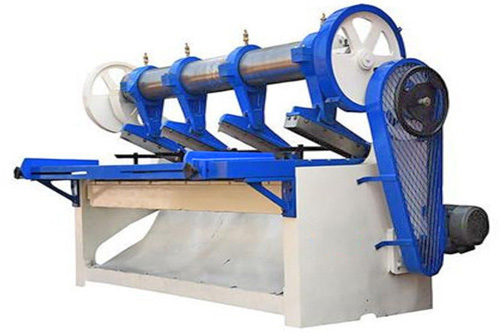

Eccentric Slotter Machine is equipped with three slotting heads and one corner cutting head capable to punch out number of boards at a time. It is used for slotting & corner cutting of the corrugated board simultaneously. The slot units are mounted over an eccentric roller causing them to move accurately as required. Guides are provided on the feed table to support the sheet to be fed at accurate angle and dimension. The rack arrangement is provided to set proper adjustment of knives easily. Alloy steel knives shear cut the corrugated board ensuring precise, smooth & sharp.
| Machine Size | 75” | 85” | 95” | 105” |
| Power Required(Hp) | 3 | 3 | 5 | 7.5 |
| Minimum Space Beetween Slots | 5 | 5 | 5 | 5 |
| Maximum Slot Depth | 18" | 18" | 18" | 18? |
| Production Capacity(Sheets/Hrs) | 1500 – 1800 | 1500 – 1800 | 1500 – 1800 | 1500 – 1800 |
| Wt (Approx) Kgs | 2500 | 2700 | 2900 | 3100 |
| Floor Area (Lxw) | 58”x100” | 58”x110” | 58”x120” | 58”x130” |
