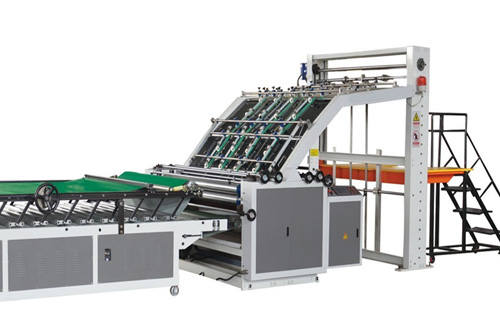

This Semi Automatic Flute Lamination Machine is suitable for lamination of top paperboard to bottom paperboard above 350g.m or 2 ply board of A/B/C/E/F flute to form a corrugated cardboard. (Automatic feeding for bottom sheet and manual top sheet).
| MODEL | Jaikar-1000 | Jaikar-1300 | Jaikar-1450 |
| Max.Sheet Size mm | 1000 ⨯ 1100 | 1300 ⨯ 110 | 1450 ⨯ 1100 |
| Min.Sheet Size mm | 320 ⨯ 450 | 320 ⨯ 450 | 320 ⨯ 450 |
| Total Power | 7 kW | 7 kW | 7 kW |
| Speed | 0-90 m/Min | 0-90 m/Min | 0-90 m/Min |
| Weight of Top Paperboard (g/m2) | ≥200 g/m2 | ≥200 g/m2 | ≥200 g/m2 |
